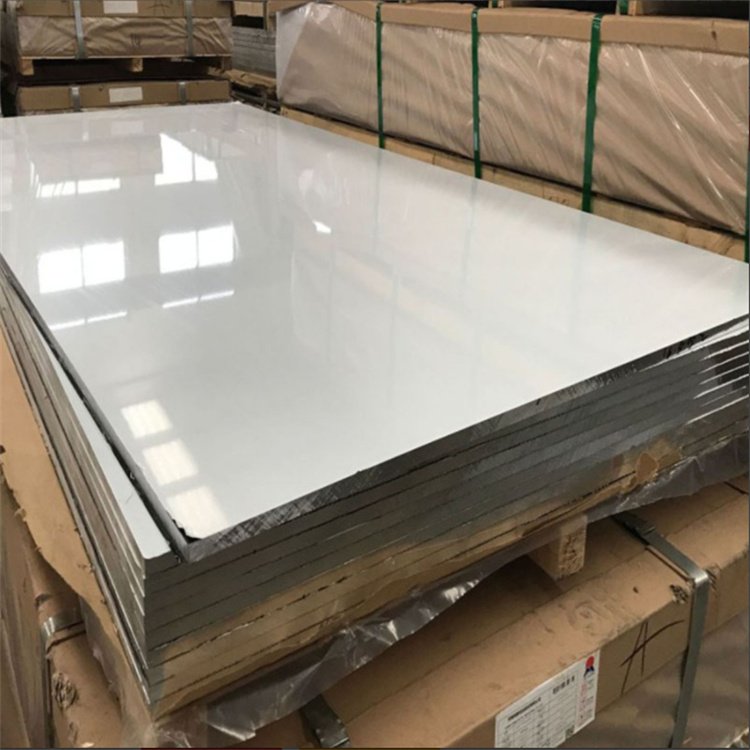

5083 Aluminum Sheet

Features

1、The main ingredient of this series aluminum sheet is magnesium element and the content is between 3% and 5%. It is also called aluminum magnesium alloy.
2、With its low density, it features high tensile strength and elongation.
3、This series aluminum sheet is a commonly used and mature series in China.

5000 Aluminum Sheet Specifications
1、Sheets thickness: 0.15-2.0mm
2、Plate thickness: 2.0mm-250mm
3、Temper: Soft and Variety Hard temper (O-H116) (T2-T6)
4、Customer requirements are acceptable

5000 Aluminum Sheet Applications
1、With the same area of other series, the weight of this aluminum sheet is lighter. As a result, it is used in aviation, such as in the fuel tanks in airplanes.
2、It is widely used in conventional industries.
3、This aluminum sheet can be used in continuously casting and rolling. It can be hot rolled. As a result, it can be used in oxidation and deep processing.

5083 Aluminum Sheet
With excellent corrosion resistance and weldability, together with high strength, this alloy was designed for welded structures requiring maximum joint strength and efficiency. Can be anodized for increased corrosion resistance, but does not lend itself to decorative applications. Not meant to be a machining alloy, but can be machined fairly well with proper preparations. Because of its relatively high magnesium content, the workability rating would only be fair. Non-heat treatable. Typical applications include large marine craft, containers, railroad cars, structurals and elevator cars.

5754 Aluminum Sheet
Excellent corrosion resistance and, unlike the other magnesium alloys, it maintains that rating when functioning in the150-300 degrees F range where the others would be prone to stress corrosion. Not a decorative alloy but well adapted to the applied finishing processes. High strength, excellent weldability, fair formability, and poor machinability. Non-heat treatable. Typical applications include dump bodies, exhaust stacks, marine components, and chemical handling vessels.

Our Aluminium sheets products list including
1、Coil sheet, Mill finish aluminium sheet (MFP)
2、Color coated aluminium sheet
3、Checkered plate (TLP in nickname of , checker plate, Tread plate, diamond plate, chequer plate)
4、Mirror finish aluminium sheet (Mirror reflective aluminium sheet)
5、Anodised aluminium sheet (two side anodised, only silver color available.)
6、Stucco aluminium sheet (orange skin type, variations stucco type)
7、CTP base board
8、PS base board
9、CC Lids/cap plate

As a China-based 5083 aluminum sheet manufacturer and supplier, we  also produce coated aluminum coil, aluminum plate, aluminium slit coil, aluminum strip, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
